微生物實驗室的裝修包含多種系統設計
隨著
醫療新技術和新的手術工具的不斷涌現，帶動了手術量的迅猛上升，而且手術室是醫學技術與工程技術結合的產物，下面來講講
手術室建設要求以及手術室感染控制原則是怎樣的？
With the continuous emergence of new medical technologies and new surgical tools, the number of operations has increased rapidly. Moreover, the operating room is the product of the combination of medical technology and engineering technology. What are the requirements of the operating room and the principles of infection control in the operating room?
手術室的要求
Operating room requirements
手術室是醫院中無菌潔凈要求很嚴格的地方之一，手術室的建設、布局、工作流程和治理都是圍繞無菌要求設計的。
The operating room is one of the places in the hospital with strict aseptic and clean requirements. The construction, layout, work flow and management of the operating room are designed around the aseptic requirements.
手術室又是醫療設備密集的科室，除手術床、無影燈外，麻醉機、監護、電刀以及自體血回收機、手術顯微鏡、影像系統等已成為手術常用設備。隨著技術的發展，新的手術工具不斷涌現，如各類軟硬內窺鏡下手術、導航設備、立體定位系統、手術機器人等微創手術輔助設備等，如此眾多的設備擁擠在手術室內，對設備布局、安裝、配電及用電安全提出了更高的要求。
The operating room is also a department with dense medical equipment. In addition to the operating table and shadowless lamp, anesthesia machine, monitoring, electric knife, autologous blood recovery machine, operating microscope and imaging system have become common equipment for surgery. With the development of technology, new surgical tools are constantly emerging, such as various soft and hard endoscopic surgery, navigation equipment, stereo positioning system, surgical robot and other minimally invasive surgical auxiliary equipment. So many equipment are crowded in the operating room, which puts forward higher requirements for equipment layout, installation, power distribution and power safety.
另外，現在各家醫院分散建設的導管室、膀胱鏡室等，有些也是參照手術室要求建立起來的準手術室。尤其是開展參與治療的導管室，基本上是嚴格按照手術室的規范治理和使用，這些科室廣義上說也是擴展的手術室。這些準手術室在老醫院都是見縫插針式地建設，新建醫院應該綜合考慮這些科室與常規手術室間的布局安排。
In addition, some of the catheter rooms and cystoscopy rooms scattered in various hospitals are also quasi operating rooms established according to the requirements of operating rooms. In particular, the catheter rooms involved in the treatment are basically managed and used in strict accordance with the specifications of the operating room. In a broad sense, these departments are also expanded operating rooms. These quasi operating rooms are built in the old hospital in a timely manner. The new hospital should comprehensively consider the layout between these departments and the conventional operating rooms.
Principles of infection control in operating room
防止和降低手術感染是手術室建設很基本的要求，感染控制的方法有：
Preventing and reducing surgical infection is a very basic requirement for the construction of the operating room. The methods of infection control include:
(1)通過術前備皮和術中對非手術區域的無菌覆蓋，減少患者自身感染；(2)對手術用具和物品的嚴格消毒或隔離，減少外源接觸感染；(3)降低空氣中的灰塵和微生物粒子，減少懸浮污染物的擴散感染；(4)使用抗生素。這是一種補救措施，其靠藥物往控制已發生的感染。
(1) Through preoperative skin preparation and aseptic coverage of non-surgical areas during the operation, the patient's self infection can be reduced; (2) Strictly disinfect or isolate surgical instruments and articles to reduce external contact infection; (3) Reduce the dust and microbial particles in the air and reduce the diffusion and infection of suspended pollutants; (4) Use antibiotics. This is a remedial measure that relies on drugs to control the infection that has occurred.
我國目前普遍存在的題目是，只注重預防感染結果，而忽略了對感染的全過程控制。臨床表現是依靠大量抗生素來減少術后感染率，而對手術無菌過程缺乏嚴格控制。
At present, the common problem in our country is that we only pay attention to the prevention of infection results and neglect the whole process control of infection. The clinical manifestation is to rely on a large number of antibiotics to reduce the postoperative infection rate, while the aseptic process of the operation lacks strict control.
為減少抗生素的濫用，必須進步手術室潔凈水平，嚴格無菌操縱和治理，加強對整個手術過程的控制，切斷所有可能的污染途徑(包括空氣)，阻止細菌接觸手術創口進進人體。
In order to reduce the abuse of antibiotics, it is necessary to improve the cleanliness level of the operating room, strictly control the aseptic operation and treatment, strengthen the control of the whole operation process, cut off all possible pollution channels (including air), and prevent bacteria from contacting the surgical wound and entering the human body.
LAPC9306手持式塵埃粒子計數器
該儀器是公司最新研制成功的采用全半體激光傳感器的手持式激光塵埃粒子計數器，可與PC電腦數據采集系統連接可進行遠程控制，可直接觀測儀器的測試情況，測試數據可通過電腦進行分析處理并可以保存為Excel文件。技術指標均滿足國家計量總局頒布的JJG547-88檢定規程的要求，整機功能采用美國微電腦控制處理技術及半導體激光傳感器技術及進口氣泵，具有功能多、測量精度高、速度快、便于攜帶和操作簡單等特點。儀器一次采樣可同時測得多種粒徑的塵埃粒子數，該產品已被廣泛應用于電子生產企業潔凈室檢測；過濾器現場檢測、撿漏；可監測生物安全，HVAC系統，計算機室，飲料包裝環境，藥品、醫療器械生產環境，醫院潔凈手術室，汽車噴涂環境,微電子、生化制品、食品衛生、精細化工、精密機械和航空航天等生產和科研部門，是暖通空調和制藥企業及其監督管理部門貫徹GMP規范和電子生產企業首選儀器。
主要技術參數：
|
光源
|
半導體激光器, 壽命大于35000小時
|
|
采樣流量
|
2.83L/min （0.1ft3）美國進口氣泵
|
|
顯示方式
|

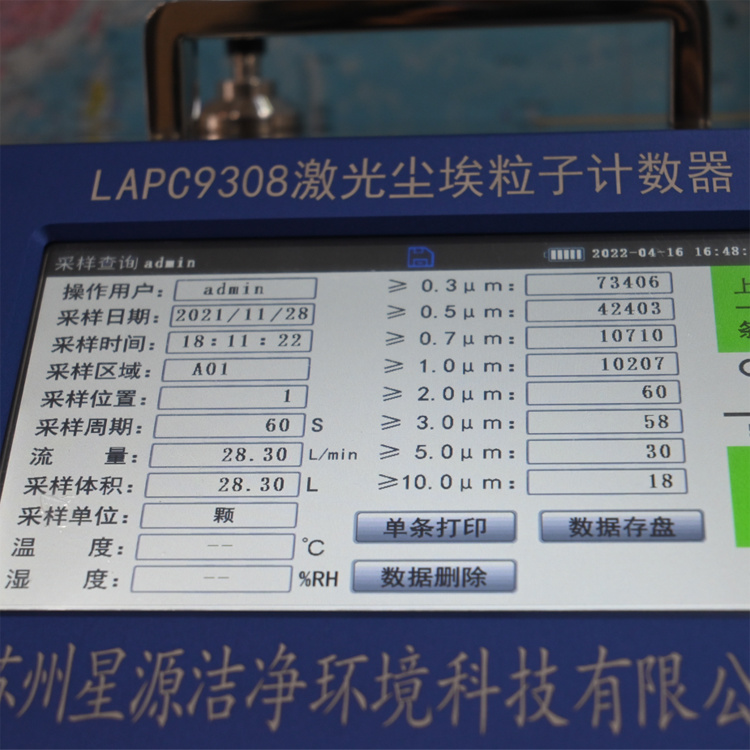

液晶屏顯示（LCD彩屏） 、實時顯示、上一周期顯示、實時濃度顯示、可顯示時間、日期、測量值、溫濕度、房間號、采樣點、采樣次數、電池電量、狀態等參數、 95% UCL 計算, 可直接顯示粒子濃度 (顆/立方米)
|
|
可充電電池
|
鋰離子電池，7.4 V，2200mAh.
|
|
供電電源
|
交流電源適配器，AC ：100V～245 V，50/60 Hz至 DC： 7.4 V，1 A；
|
|
工作時間
|
6 小時（剩余電量指示）
|
|
計數模式
|
累計值，差值，濃度值
|
|
測試方式
|
單一、連續、遠程、
|
|
單位換算
|
單位可換算成m3
|
|
粒徑通道
|
0.3 、 0.5、 1.0、 3.0、 5.0、 10μm, 六檔粒徑同時計數.
|
|
采樣周期
|
1～10000(s) 延時計數：0～99（S ） 自凈時間：≤10 （min ）
|
|
工作環境
|
溫度:10～40℃ (50～104℉) 相對溫度:20～90%RH,無凝露. 大氣壓力：86-106KPa
|
|
溫濕度：
|
選購 （1）溫度：0～50℃±1℃. （2）濕度：0～100%RH±5%
|
|
UCL設置
|
采樣點數（A）：2～9點設定。 每點采樣次數：（L）2～9次設定 測量位置：0-999
|
|
UCL報表
|
符合ISO14644-1、GB50073-2001、 GMP、FS-209E標準
|
|
數據存儲
|
可存儲20000組數據（循環式緩沖區）(包括粒徑、數據、環境數據、年、月、日、時間，采樣量，數據位置口)，斷電后數據不丟失。
|
|
通訊接口
|
RS232，9600波特率
|
|
報警設置
|
儀器帶級別報警功能，可對潔凈室100級，1000級，10000級，100000級，300000級級超標后報警 電池電壓過低報警
|
|
零計數
|
符合JJG-547-88塵埃粒子計數器檢定規程要求 JIS B9921:1997 每五分鐘少于1個
|
|
重疊誤差
|
5 %，2,000,000粒/立方英尺時
|
|
打印功能
|
外置打印機（選購件）
|
|
外形尺寸
|
230×130×45(mm)
|
|
重量
|
0.6kg
|
|
標準配置
|
手提箱/充電器、等動力采樣頭、零過濾器、RS 232連接線、電腦連接通訊軟件光盤
|
|
選購件
|
外置無線藍牙打印機，專業三角采樣架，溫濕度傳感器
|
